MIL-Spec Circular Connectors

exelgroupstg on Oct 04, 2022

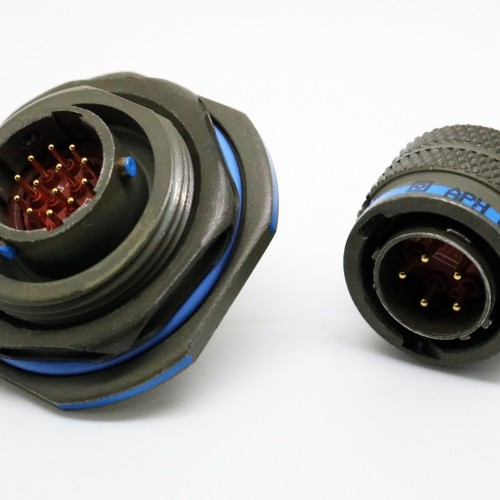

Designed to meet the stringent requirements of the MIL-DTL-38999 standard, these connectors excel in withstanding extreme temperatures, vibrations, and harsh environmental conditions.

162GB series range of high temperature miniature bayonet lock connectors.

Features:

• Crimp termination with size 20, 16 and 12 contacts

• Operating temperature -55°C to +200°C (dependent on the plating finish)

• Manufactured from Aluminium Alloy with Cadmium Olive Drab plating as default and alternate finishes on request

• Plug connectors with 360° RFI fingers available for increased EMC performance

602GB series is a range of high temperature miniature bayonet lock connectors with rear insertable, rear release crimp contacts.

Features:

• Crimp termination with size 20, 16 and 12 contacts

• Operating temperature -65°C to +200°C

• Manufactured from Aluminium Alloy with Cadmium Olive Drab plating (other finishes may be supplied)

• Stainless Steel versions are also available

• Qualified to Pan 6432-1
